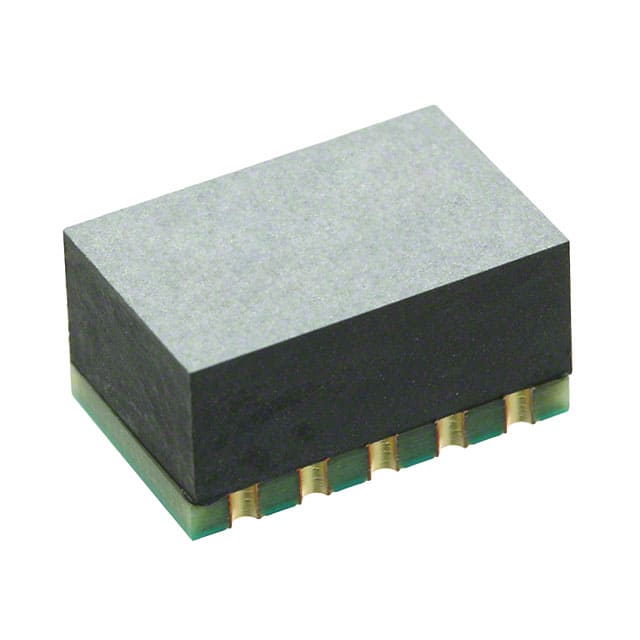

DOC102F-040-0M

Part Number DOC102F-040-0M

Manufacturer Connor Winfield

Description XTAL OSC OCXO 40.0000MHZ LVCMOS

Package -

Datasheet cx207.pdf

Quantity

22837 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Crystals, Oscillators, Resonators , Oscillators

Frequency

40 MHz

Mfr

Connor Winfield

Product Status

Obsolete

Base Resonator

Crystal

Height - Seated (Max)

0.307" (7.80mm)

Series

DOC

Function

Operating Temperature

-40°C ~ 85°C

Current - Supply (Max)

Output

LVCMOS

Absolute Pull Range (APR)

Mounting Type

Surface Mount

Size / Dimension

0.555" L x 0.358" W (14.10mm x 9.10mm)

Type

OCXO

Voltage - Supply

3.3V

Frequency Stability

±100ppb

Package / Case

6-SMD, No Lead

Current - Supply (Disable) (Max)

Package

Tape & Reel (TR)^^Cut Tape (CT)

Ratings

Documents & Media

RESOURCE TYPE LINK

Datasheets

cx207.pdf

HTML Datasheet

DOC102F-040-0M.pdf

PCN Design/Specification

datasheet-DOC050V-010-0M-1.pdf
