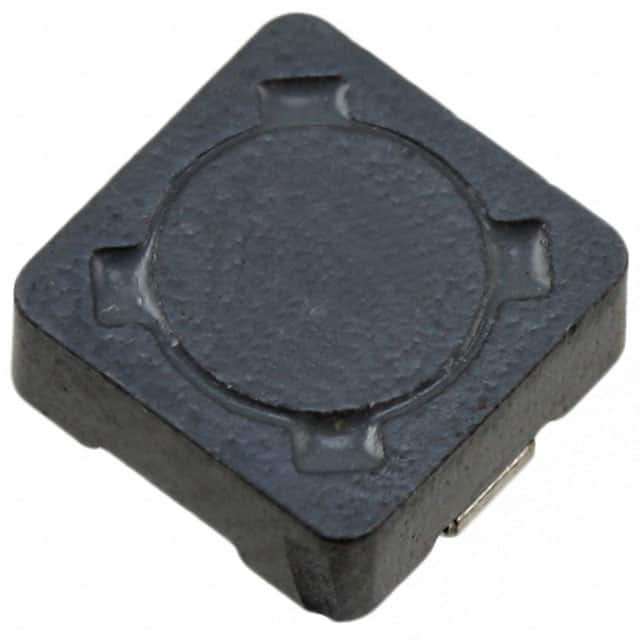

DR73-681-R

Part Number DR73-681-R

Manufacturer Eaton - Electronics Division

Description FIXED IND 680UH 290MA 3.47OHM SM

Package -

Datasheet eaton-dr-high-power-density-high-efficiency-shielded-drum-core-power-inductors-data-sheet.pdf

Quantity

40016 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Inductors, Coils, Chokes , Fixed Inductors

Package / Case

Nonstandard

Operating Temperature

-40°C ~ 125°C

Shielding

Shielded

DC Resistance (DCR)

3.47Ohm

Height - Seated (Max)

0.140" (3.55mm)

Series

Type

Drum Core, Wirewound

Inductance

680 µH

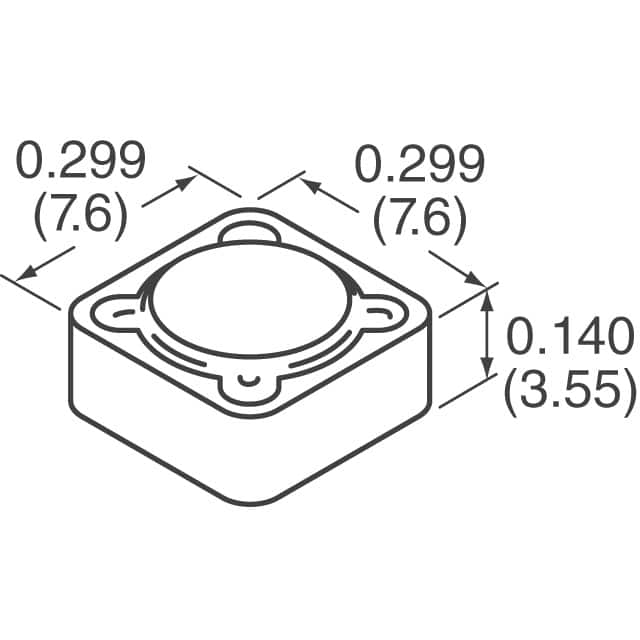

Size / Dimension

0.299" L x 0.299" W (7.60mm x 7.60mm)

Package

Tape & Reel (TR)^^Cut Tape (CT)

Material - Core

Ferrite

Q @ Freq

Mfr

Eaton - Electronics Division

Mounting Type

Surface Mount

Current Rating (Amps)

290 mA

Ratings

Product Status

Active

Inductance Frequency - Test

100 kHz

Current - Saturation (Isat)

310mA

Tolerance

±20%

Frequency - Self Resonant

Supplier Device Package

Documents & Media

RESOURCE TYPE LINK

Datasheets

eaton-dr-high-power-density-high-efficiency-shielded-drum-core-power-inductors-data-sheet.pdf

Design Resources

eaton-equiv-spicesimple-dr73.pdf

PCN Packaging

EE-PCN15011M.pdf
