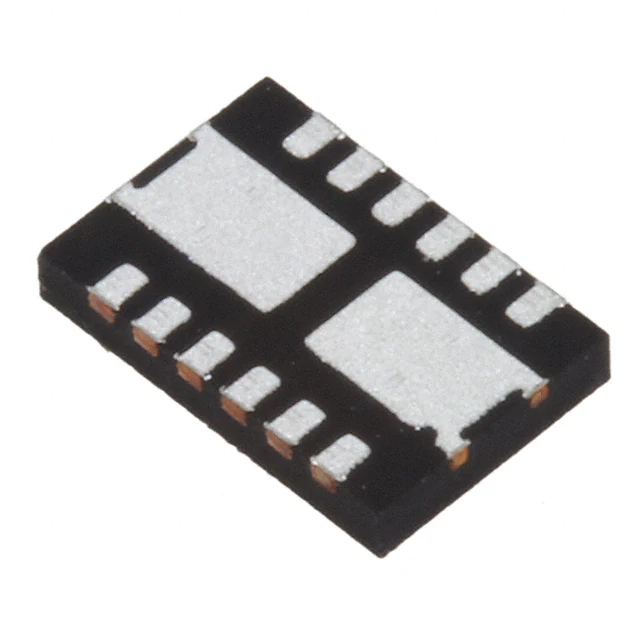

FDMD82100

Part Number FDMD82100

Manufacturer onsemi

Description MOSFET 2N-CH 100V 7A 12POWER

Package 12-Power3.3x5

Datasheet fdmd82100-d.pdf

Quantity

8100 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Discrete Semiconductor Products , Transistors - FETs, MOSFETs - Arrays

FET Feature

Standard

Current - Continuous Drain (Id) @ 25°C

Mounting Type

Surface Mount

Input Capacitance (Ciss) (Max) @ Vds

1070pF @ 50V

Power - Max

Product Status

Last Time Buy

Supplier Device Package

12-Power3.3x5

Series

PowerTrench®

FET Type

2 N-Channel (Dual)

Drain to Source Voltage (Vdss)

100V

Gate Charge (Qg) (Max) @ Vgs

17nC @ 10V

Operating Temperature

-55°C ~ 150°C (TJ)

Rds On (Max) @ Id, Vgs

19mOhm @ 7A, 10V

Base Product Number

FDMD82

Mfr

onsemi

Package

Tape & Reel (TR)^^Cut Tape (CT)

Vgs(th) (Max) @ Id

4V @ 250µA

Package / Case

12-PowerWDFN

Documents & Media

RESOURCE TYPE LINK

Datasheets

fdmd82100-d.pdf

PCN Obsolescence/ EOL

PD24582X.pdf

PCN Packaging

P7A2AAB.pdf

Environmental Information

datasheet-FDMD82100-1.pdf
RoHS-statement.pdf

PCN Design/Specification

P774AAB.pdf

PCN Assembly/Origin

FPCN22659X1.pdf
