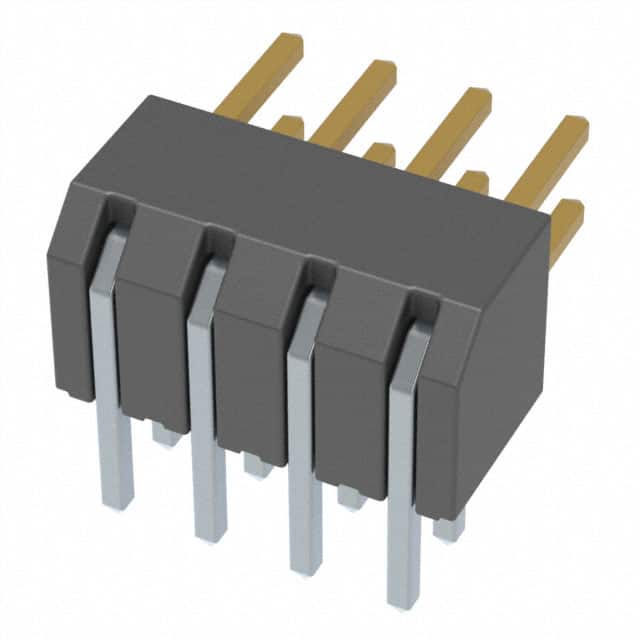

M22-2410442

Part Number M22-2410442

Manufacturer Harwin Inc.

Description CONN HEADER R/A 8POS 2MM

Package -

Datasheet C018XX_M22_Series_Connectors.pdf

Quantity

92152 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Insulation Color

Black

Contact Length - Post

0.110" (2.79mm)

Contact Finish - Post

Tin

Contact Shape

Square

Contact Finish Thickness - Post

Contact Finish - Mating

Gold

Insulation Material

Polyamide (PA6T), Nylon 6T

Contact Type

Male Pin

Number of Rows

Mounting Type

Through Hole, Right Angle

Insulation Height

0.169" (4.30mm)

Series

M22

Connector Type

Header

Pitch - Mating

0.079" (2.00mm)

Contact Material

Copper Alloy

Applications

Mfr

Harwin Inc.

Package

Tube

Row Spacing - Mating

0.079" (2.00mm)

Ingress Protection

Material Flammability Rating

UL94 V-0

Shrouding

Unshrouded

Contact Length - Mating

0.157" (4.00mm)

Current Rating (Amps)

2A per Contact

Mated Stacking Heights

Number of Positions

Number of Positions Loaded

All

Termination

Solder

Overall Contact Length

Product Status

Obsolete

Style

Board to Board or Cable

Fastening Type

Push-Pull

Contact Finish Thickness - Mating

Features

Operating Temperature

-40°C ~ 105°C

Voltage Rating

Documents & Media

RESOURCE TYPE LINK

PCN Obsolescence/ EOL

Obsolescence_notification_letter_Multiple_Devices_13-05-2019.pdf

Environmental Information

M22-2410442_3.pdf
HF-338_REACH_Statement.pdf
