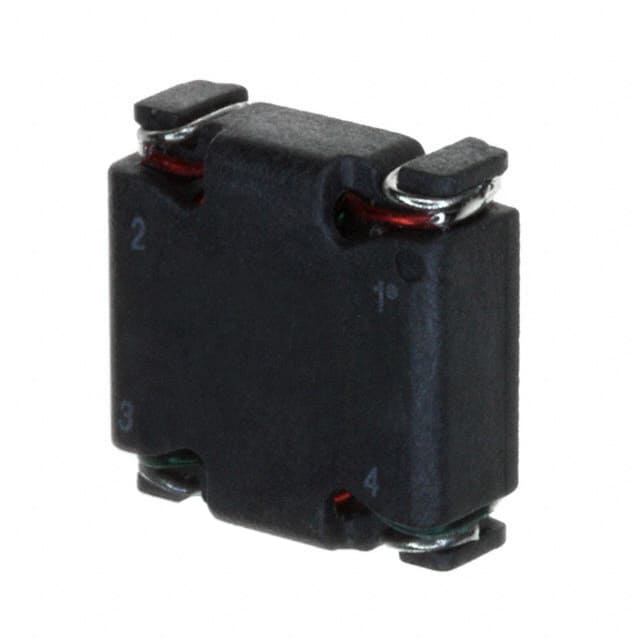

P0176NL

Part Number P0176NL

Manufacturer Pulse Electronics Power

Description INDUCT ARRAY 2 COIL 5.5UH SMD

Package -

Datasheet

Quantity

94272 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Inductors, Coils, Chokes , Arrays, Signal Transformers

Current Rating - Series

2.6 A

Size / Dimension

0.500" L x 0.500" W (12.70mm x 12.70mm)

Operating Temperature

-40°C ~ 130°C

Shielding

Unshielded

DC Resistance (DCR) - Series

76mOhm Max

Ratings

Number of Coils

Inductance - Connected In Parallel

5.5 µH

Tolerance

±10%

Height

0.215" (5.46mm)

Series

Polecat

Inductance - Connected In Series

22.45 µH

Mounting Type

Surface Mount

DC Resistance (DCR) - Parallel

19mOhm Max

Mfr

Pulse Electronics Power

Package

Tube

Product Status

Active

Current Rating - Parallel

5.2 A

Package / Case

Nonstandard

Documents & Media

RESOURCE TYPE LINK

HTML Datasheet

P0177NL.pdf
