PCLH-206A1S-000

Part Number PCLH-206A1S-000

Manufacturer TE Connectivity Potter & Brumfield Relays

Description RELAY GEN PURPOSE DPDT 15A 110V

Package -

Datasheet PCL,PCLH.pdf

Quantity

50432 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Product Status

Obsolete

Operate Time

20 ms

Switching Voltage

120VAC - Max

Must Operate Voltage

88 VAC

Mfr

TE Connectivity Potter & Brumfield Relays

Coil Type

Non Latching

Termination Style

Plug In, Quick Connect - 0.187" (4.7mm)

Release Time

20 ms

Relay Type

General Purpose

Base Product Number

PCLH-206

Coil Voltage

110VAC

Seal Rating

Contact Material

Silver Cadmium Oxide (AgCdO)

Coil Resistance

3.4 kOhms

Must Release Voltage

33 VAC

Series

PCLH, OEG

Contact Form

DPDT (2 Form C)

Package

Tray

Contact Rating (Current)

15 A

Mounting Type

Socketable

Features

Coil Insulation

Class F

Operating Temperature

-40°C ~ 55°C

Documents & Media

RESOURCE TYPE LINK

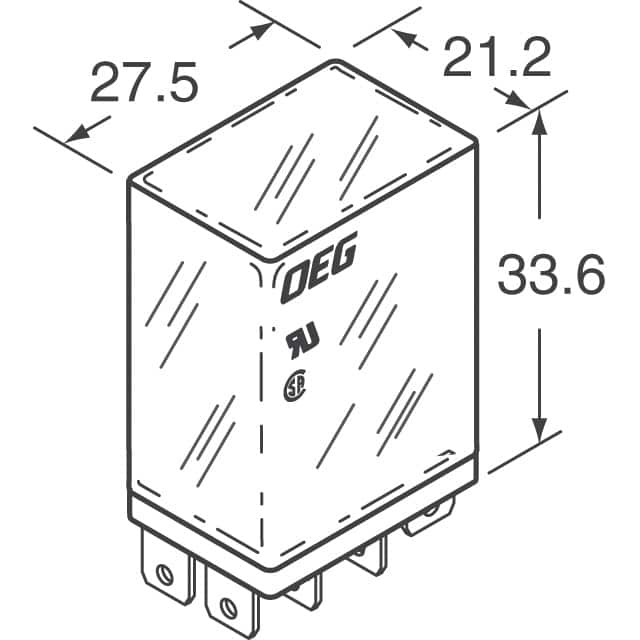

3D Drawings

PCLH-206A1S-000.pdf

Datasheets

PCL,PCLH.pdf

HTML Datasheet

PCL-401DSP-000.pdf
