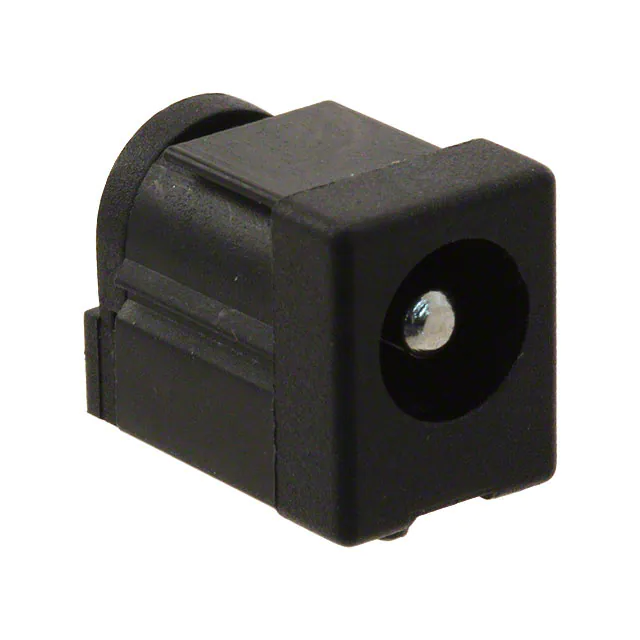

PJ-050BH

Part Number PJ-050BH

Manufacturer CUI Devices

Description CONN PWR JACK 2.5X5.5MM SOLDER

Package -

Datasheet pj-050bh.pdf

Quantity

35828 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Connectors, Interconnects , Barrel - Power Connectors

Mfr

CUI Devices

Contact Material

Brass, Copper Alloy

Gender

Male

Actual Diameter

0.098" (2.50mm ID), 0.236" (6.00mm OD)

Mounting Feature

Body Material

Number of Positions/Contacts

2 Conductors, 3 Contacts

Features

Board Guide

Base Product Number

PJ-050

Mating Length/Depth

0.335" (8.50mm)

Operating Temperature

-25°C ~ 85°C

Termination

Solder

Includes

Body Color

Black

Industry Recognized Mating Diameter

2.50mm ID (0.098"), 5.50mm OD (0.217")

Shielding

Unshielded

Thread Size

Connector Type

Jack

Voltage - Rated

24VDC

Internal Switch(s)

Single Switch, Normally Closed

Mounting Type

Through Hole, Right Angle

Current Rating (Amps)

5 A

Insulation Color

Ingress Protection

Housing Material

Polybutylene Terephthalate (PBT)

Series

Package

Bag

Product Status

Active

Material Flammability Rating

UL94 V-0

Contact Material - Plating

Silver

Documents & Media

RESOURCE TYPE LINK

Datasheets

pj-050bh.pdf
