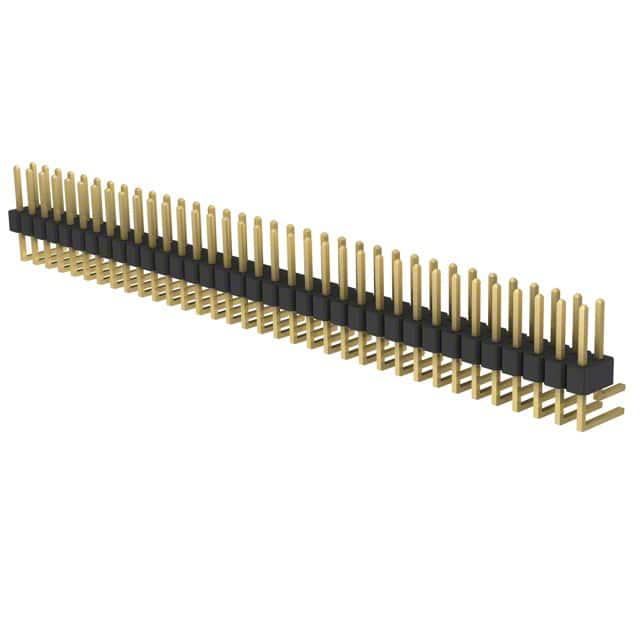

PRPC035DBAN-M71RC

Part Number PRPC035DBAN-M71RC

Manufacturer Sullins Connector Solutions

Description CONN HEADER R/A 70POS 2.54MM

Package -

Datasheet 11639.pdf PAGE116-117-.100-MALE-HDR-RA-SMT.pdf

Quantity

96860 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Voltage Rating

Material Flammability Rating

UL94 V-0

Features

Style

Board to Board or Cable

Contact Shape

Square

Ingress Protection

Insulation Color

Black

Base Product Number

PRPC035

Mfr

Sullins Connector Solutions

Number of Positions

Contact Length - Mating

0.230" (5.84mm)

Number of Positions Loaded

All

Fastening Type

Push-Pull

Insulation Material

Polybutylene Terephthalate (PBT)

Current Rating (Amps)

3A per Contact

Mated Stacking Heights

Connector Type

Header, Breakaway

Contact Type

Male Pin

Pitch - Mating

0.100" (2.54mm)

Contact Finish Thickness - Mating

Flash

Package

Bulk

Product Status

Active

Series

Mounting Type

Through Hole, Right Angle

Contact Length - Post

0.120" (3.05mm)

Overall Contact Length

Contact Material

Brass

Row Spacing - Mating

0.100" (2.54mm)

Shrouding

Unshrouded

Applications

Termination

Solder

Contact Finish - Mating

Gold

Contact Finish - Post

Gold

Contact Finish Thickness - Post

Flash

Number of Rows

Insulation Height

0.197" (5.00mm)

Operating Temperature

-40°C ~ 105°C
