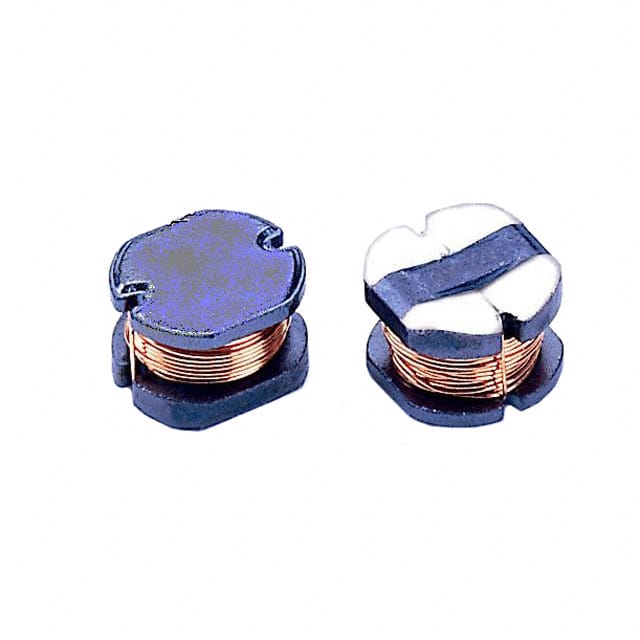

SC32-150

Part Number SC32-150

Manufacturer Signal Transformer

Description FIXED IND 15UH 660MA 547MOHM SMD

Package -

Datasheet SC32-150.pdf

Quantity

70505 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Inductors, Coils, Chokes , Fixed Inductors

Operating Temperature

-40°C ~ 125°C

Q @ Freq

Inductance

15 µH

Product Status

Active

Package / Case

Nonstandard

Type

Wirewound

Tolerance

±20%

DC Resistance (DCR)

547mOhm Max

Ratings

Shielding

Unshielded

Current - Saturation (Isat)

570mA

Frequency - Self Resonant

Supplier Device Package

Size / Dimension

0.150" L x 0.130" W (3.80mm x 3.30mm)

Height - Seated (Max)

0.094" (2.40mm)

Material - Core

Mfr

Signal Transformer

Series

SC32

Package

Tape & Reel (TR)^^Cut Tape (CT)

Current Rating (Amps)

660 mA

Inductance Frequency - Test

2.52 MHz

Mounting Type

Surface Mount

Documents & Media

RESOURCE TYPE LINK

Environmental Information

SCIHP1338-8R2M.pdf
SCRH4D28-4R7.pdf
SCEP134H-4R8.pdf

Datasheets

SC32-150.pdf
