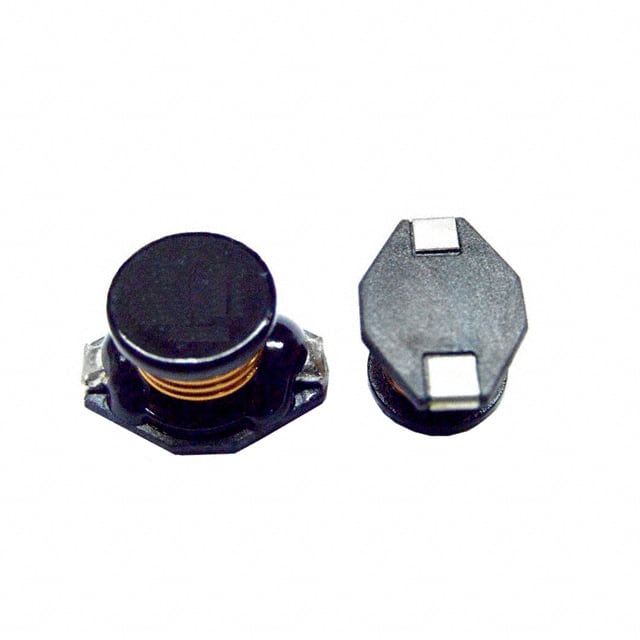

SC3326F-220

Part Number SC3326F-220

Manufacturer Signal Transformer

Description FIXED IND 22UH 3A 67 MOHM SMD

Package -

Datasheet SC3326F-220.pdf

Quantity

6482 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Inductors, Coils, Chokes , Fixed Inductors

Ratings

Size / Dimension

0.530" L x 0.390" W (13.45mm x 9.90mm)

Package

Tape & Reel (TR)

Mfr

Signal Transformer

DC Resistance (DCR)

67mOhm Max

Type

Wirewound

Shielding

Unshielded

Series

SC3326F

Product Status

Active

Current Rating (Amps)

3 A

Mounting Type

Surface Mount

Inductance

22 µH

Frequency - Self Resonant

Height - Seated (Max)

0.315" (8.00mm)

Inductance Frequency - Test

100 kHz

Package / Case

Nonstandard

Supplier Device Package

Tolerance

±20%

Q @ Freq

Material - Core

Current - Saturation (Isat)

5.2A

Operating Temperature

-40°C ~ 125°C
