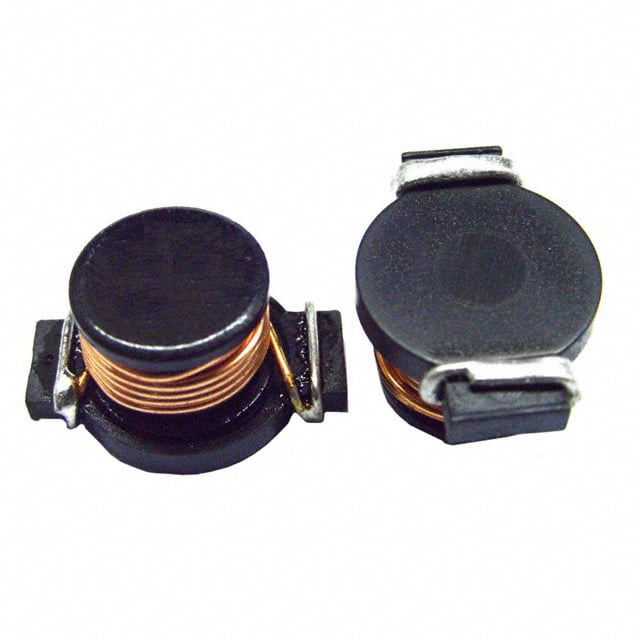

SC5040FH-100

Part Number SC5040FH-100

Manufacturer Signal Transformer

Description FIXED IND 10UH 10A 14.1 MOHM SMD

Package -

Datasheet SC5040FH-101.pdf

Quantity

22346 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Inductors, Coils, Chokes , Fixed Inductors

Frequency - Self Resonant

Supplier Device Package

Package

Tape & Reel (TR)

Product Status

Obsolete

DC Resistance (DCR)

14.1mOhm Max

Ratings

Inductance Frequency - Test

100 kHz

Height - Seated (Max)

0.484" (12.30mm)

Q @ Freq

Mounting Type

Surface Mount

Type

Wirewound

Material - Core

Inductance

10 µH

Tolerance

±30%

Package / Case

Nonstandard

Mfr

Signal Transformer

Series

SC5040FH

Current Rating (Amps)

10 A

Current - Saturation (Isat)

17.8A

Shielding

Unshielded

Operating Temperature

-40°C ~ 125°C

Size / Dimension

0.880" L x 0.640" W (22.35mm x 16.26mm)

Documents & Media

RESOURCE TYPE LINK

Datasheets

SC5040FH-101.pdf

PCN Obsolescence/ EOL

PCN121220_12-Dec-2020.pdf
