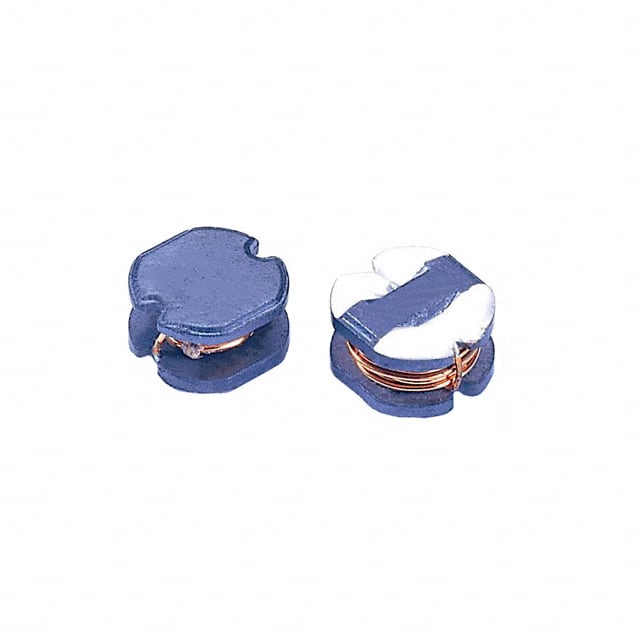

SC53-121

Part Number SC53-121

Manufacturer Signal Transformer

Description FIXED IND 120UH 520MA 1.01OHM SM

Package -

Datasheet SC53-121.pdf

Quantity

62835 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Inductors, Coils, Chokes , Fixed Inductors

Type

Wirewound

Shielding

Unshielded

Tolerance

±20%

Series

SC53

Supplier Device Package

Size / Dimension

0.240" L x 0.217" W (6.10mm x 5.50mm)

Current - Saturation (Isat)

420mA

Product Status

Active

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

1 kHz

Height - Seated (Max)

0.130" (3.30mm)

Q @ Freq

Frequency - Self Resonant

Mfr

Signal Transformer

Package

Tape & Reel (TR)

Inductance

120 µH

Current Rating (Amps)

520 mA

Ratings

Mounting Type

Surface Mount

Material - Core

DC Resistance (DCR)

1.01Ohm Max

Package / Case

Nonstandard
