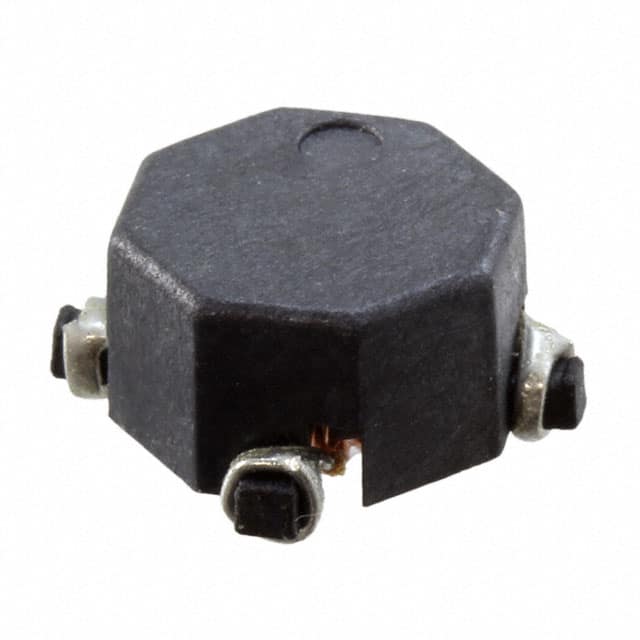

SCX114-301

Part Number SCX114-301

Manufacturer Signal Transformer

Description INDUCT ARRAY 2 COIL 300UH SMD

Package -

Datasheet SCX114_Series.pdf

Quantity

58944 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Inductors, Coils, Chokes , Arrays, Signal Transformers

Current Rating - Series

160 mA

Inductance - Connected In Series

1.2 mH

Tolerance

±20%

Current Rating - Parallel

320 mA

Mfr

Signal Transformer

Ratings

Size / Dimension

0.461" L x 0.461" W (11.70mm x 11.70mm)

Shielding

Unshielded

Product Status

Obsolete

DC Resistance (DCR) - Parallel

1.525Ohm Max

Mounting Type

Surface Mount

Height

0.217" (5.50mm)

Series

SCX114

DC Resistance (DCR) - Series

6.1Ohm Max

Number of Coils

Inductance - Connected In Parallel

300 µH

Operating Temperature

Package

Tape & Reel (TR)

Package / Case

Nonstandard

Documents & Media

RESOURCE TYPE LINK

Datasheets

SCX114_Series.pdf
