Part Number SDQ12-820-R

Manufacturer Eaton - Electronics Division

Description INDUCT ARRAY 2 COIL 82.81UH SMD

Package -

Datasheet eaton-sdq-dual-winding-shielded-drum-inductor-transformer-data-sheet.pdf

Quantity

64329 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

*

Contact Name* *

*

Email* *

*

Country

*

Company Name

*

Product Attributes

Type PARAMETERS

Categories

Inductors, Coils, Chokes , Arrays, Signal Transformers

DC Resistance (DCR) - Parallel

2.62Ohm

Current Rating - Series

154 mA

Package

Tape & Reel (TR)

Current Rating - Parallel

309 mA

Package / Case

Nonstandard

DC Resistance (DCR) - Series

10.49Ohm

Operating Temperature

-40°C ~ 125°C

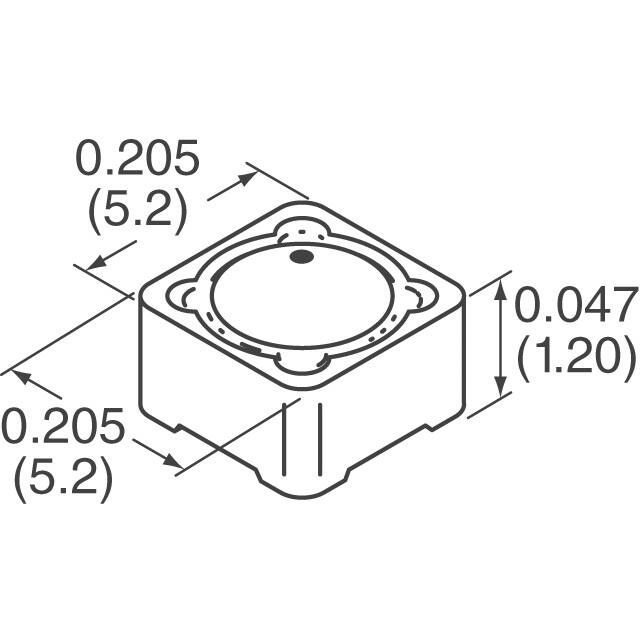

Size / Dimension

0.205" L x 0.205" W (5.20mm x 5.20mm)

Series

SDQ

Product Status

Active

Shielding

Shielded

Number of Coils

2

Mounting Type

Surface Mount

Tolerance

±20%

Inductance - Connected In Parallel

82.81 µH

Inductance - Connected In Series

331.2 µH

Current Saturation - Series

167 mA

Mfr

Eaton - Electronics Division

Current Saturation - Parallel

334 mA

Ratings

-

Height

0.047" (1.19mm)

Documents & Media

RESOURCE TYPE LINK

PCN Assembly/Origin

163bus-elx-pcn-philippines-p-2.pdf

Datasheets

eaton-sdq-dual-winding-shielded-drum-inductor-transformer-data-sheet.pdf

PCN Packaging

EE-PCN15011M.pdf
